1995 VW Westfalia T4 California Biker



The Volkswagen Westfalia T4 Transporter California Biker Camper Model History

In mid 1995 the VW Westfalia T4 Transporter California Biker model was introduced. The Westfalia California Biker was a special  limited edition bus designed to appeal to cyclists. The Westfalia California Biker was available in poptop, hightop and a new type of roof called the “Compact” roof. This was a solid roof that was lower than a standard hightop and did not have an integral bed but had extra storage compartments. The basic model equipment was the same as the 1994/ 95 California Coach but it also had some extra equipment fitted as standard (including a cycle rack) and was available in only two exterior colours.

Circa 1996 Volkswagen made changes to to the base model T4 transporter. The old model became known as the “short nose” version and the new model as the “long nose”. Although both versions look fairly similar the main changes related to the front doors, front wings, bonnet, front grills and headlights. The changes were made to increase the engine bay size in order to accommodate the new VR6 engine option. The first California Bikers were made using the “short nose” T4 as a base and then models after circa 1996 were made using the “long nose” T4 version as a base

If you find the site useful please consider making a small donation to help pay towards the site running and development costs by clicking the Paypal button on the left (You don’t need a Paypal account to make a donation) ;-).



1) 1995 - 1996 VW Westfalia T4 Transporter California Biker Camper engine options and approx price (inclusive tax when new in standard form):

From 07/1995 price list. Prices are in German Deutschmark:

Volkswagen California Biker Petrol Otto Kat Motor 2.0 litre, 4 cylinder, 62 KW (84 PS) . 5 Speed Gearbox, load weight 2725 kg, wheelbase 2920 mm, Poptop Roof 56,385 DM, Compact Roof 56,385 DM, Hightop Roof 60,697 DM.

Volkswagen California Biker Petrol Otto Kat Motor 2.5 litre, 5 cylinder, 81 KW (110 PS) . 5 Speed Gearbox, load weight 2800 kg, wheelbase 2920 mm, Poptop Roof 59,835 DM, Compact Roof 59,835 DM, Hightop Roof 64,147 DM.

Volkswagen California Biker Petrol Otto Kat Motor 2.5 litre, 5 cylinder, 81 KW (110 PS) . Automatic Speed Gearbox, load weight 2800 kg, wheelbase 2920 mm, Poptop Roof 63,101 DM, Compact Roof 63,101 DM, Hightop Roof 67,413 DM.

Volkswagen California Biker Diesel Motor 2.4 litre, 5 cylinder, 57 KW (78 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 2920 mm, Poptop Roof 58,351 DM, Compact Roof 58,351 DM, Hightop Roof 62,664 DM.

Volkswagen California Biker Diesel Motor 1.9 litre Turbo-D Kat, 4 cylinder, 50 KW (68 PS), 5 Speed Gearbox, load weight 2725 kg, wheelbase 2920 mm,  Poptop Roof 56,183 DM, Compact Roof 56,183 DM, Hightop Roof 60,496 DM.

2) 1995 - 1996 VW Westfalia T4 Transporter California Biker Camper Colour Options

The VW Westfalia California Biker Camper was available in 2 colours.

T7T7 Grey White (L902) (Grauweiß)

J1J1  Blue Smoke Metallic (LH5Y) (Rauchblau Met)

GreyWhite

rauchblau

1995CaliforniaBikerPopWhite

1997CaliforniaBikerPopBlue

1995 VW T4 Westfalia California  Biker Hightop White



1996CaliforniaBikerCompactW

1996CaliforniaBikerBlueMet











































3) 1995 - 1996 VW Westfalia T4 Transporter California Biker Camper Furniture Specification

The 1995 - 1996 VW Westfalia T4 Transporter California Biker Camper layout consisted of:

1994CaliforniaLayout

















1) Swivel Seats.

2) Table.

3) Slideable Seat.

4) Sink.

5) Gas cooker, removable.

6) Compressor fridge.

7) Wardrobe (upper) / Auxiliary battery (lower).

8) Bed extension (upper) / Luggage compartment (lower).

9) Storage (upper) / Cubby hole for gas bottle (lower).

10) Freshwater tank (lower).



1995 - 1996 VW Westfalia T4 Transporter California Biker Camper Interior Photos

The Volkswagen Westfalia California Biker camper had grey / multicoloured speckle furniture with a beech wood colour edging. The upholstery was a grey / multicoloured cactus patterned fabric.

1995CaliforniaBikerInt6

1995CaliforniaBikerInt2

1995CaliforniaBikerInt5

1995CaliforniaBikerInt4

1995CaliforniaHighwayInt4

1995CaliforniaBikerInt3

1995CaliforniaHighwayInt7

1995CaliforniaBikerInt1

1995CaliforniaHighwayInt5

































4) 1995 - 1996 VW Westfalia T4 California Biker Camper Upholstery Specification

The upholstery material in the VW Westfalia T4 California Biker camper for driver, passenger and rear seat / bed was a Jacquard  woven design using a grey material with multi coloured cactus pattern known as “Kactus”.

CactusMaterial

1995CaliforniaHighwayCactus













The curtains for sides and rear in the VW Westfalia T4 California Biker camper were grey.

CaliforniaHighwayCurtain

















5) 1994 - 1997 Volkswagen Westfalia T4 California Biker Camper High Top Roof Specification

The high top roof outside finish for the VW Westfalia California Biker Camper was in the same colour as the vehicle.

The inside headroom of the vehicle with hightop was 203 cm.

Lockers left and right in hightop front.

Vehicle with high top roof can potentially have sleeping space for four people.

Upper bed in hightop is 190 cm x 109 cm and  bed cushion foam is 6.5 cm thick.

Two opening side windows in roof (one on each side) with mosquito nets and roller blinds.

1995CaliforniaBikerRoofBed

















1995 - 1996 Volkswagen Westfalia T4 California Biker Camper Compact Roof Specification

The compact roof outside finish for the VW Westfalia California Biker Camper was in the same colour as the vehicle.

The inside headroom of the vehicle with the compact roof was 182 cm.

Vehicle with compact roof can potentially have sleeping space for two people (not in roof but in rock n roll bed below).

CaliforniaHighwayCompact1

CaliforniaHighwayCompact2













1995 - 1996 Volkswagen Westfalia T4 California Biker Camper Pop Top Roof Specification

1995CaliforniaHighwayPopRoo

1995CaliforniaBikerPopBed

1995CaliforniaBikerPopTop













The pop top roof outside finish for the VW Westfalia California Biker Camper was in the same colour as the vehicle.

The inside headroom of the vehicle with poptop was 135 cm.

Upper bed in poptop is 184 cm x 106 cm and  bed cushion foam is 4.5 cm thick.

Ventilation window in the front canvas of the pop top with mosquito net.

Vehicle with pop top roof can potentially have sleeping space for four people.

6) 1995 - 1996 Volkswagen Westfalia T4 California Biker Camper Flooring and Carpeting Specification

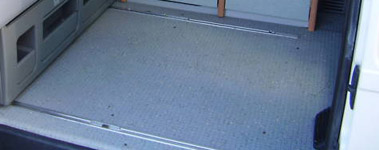

The flooring in the rear of the VW Westfalia T4 California Biker camper was a hard wearing grey PVC material with multi coloured flecks. The step is made from black plastic.

1995CaliforniaHighwayFloori

1995CaliforniaCoachFlooring













Velour carpet floor lining in drivers cab.

7) 1995 - 1996 Volkswagen Westfalia T4 California Biker Camper Door Trim Specification

Door interior trims made from plastic with cloth material insert.

1995CaliforniaCoachDoorTrim



















8) 1995 - 1996 Volkswagen Westfalia T4 California Biker Camper Standard Model Specification

Exterior Dimensions

Length - 4655 mm (short wheelbase).

Width - 1840 mm

Height - Poptop 1990 mm / Hightop 2570 mm / Compact Roof 2385 mm

Windows

Laminated Windscreen in tinted glass.

All windows in tinted glass. (Double glazed windows in rear available at extra price).

Opening window (plastic double glazed) in front left above kitchen opposite the sliding door.

Sliding window (tinted glass) in sliding door.

Curtains

Grey curtains all round for the living and cab area.

Electrical

220 volt External CEE Hook Up socket on the outer wall at the rear left with one internal outlet socket in living area and safety trip cut out.

Automatic battery charger.

Leisure battery 12V 80 Ah (maintenance free) with split charge relay for equipment in living area (freezer / fridge etc). Charged by alternator or battery charger.

Alternator 90 Amp (or 100 Amp for 2.4 litre diesel motor).

12V socket in living area.

Fuses for electrical equipment.

CaliforniaHighwayFuses



















Central electronic control unit in drivers cab above the mirror with LCD display for outside temperature, charge level of the batteries, operating status of the cool box / fridge, freshwater / waste water tank levels, push button adjustment for cool box / fridge temperature.

1995CaliforniaBikerCent













Halogen headlights with range adjustment.

Two reversing lights.

Rear fog light.

Immobilizer device (for Otto petrol engines).

Preparation for immobilizer device (for diesel engines).

Adjustable instrument panel lights.

Warning light for hand brake, brake circuit failure and brake fluid level.

Windscreen wipers with intermittent, two speed and wash / wipe functions.

Two 11 Watt transistor lights.

One swan neck 5 Watt halogen light.

Living / Bedroom Area

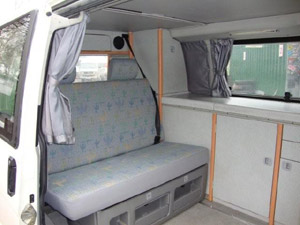

Two person seat bench that slides and folds to make a double bed in conjunction with rear bed cushion.

Rear seat bench has two three point automatic safety belts.

Two headrests in rear seat.

Storage compartment under the seat bank.

Three storage compartments in the seat bank front.

1995CaliforniaBikerRearSeat

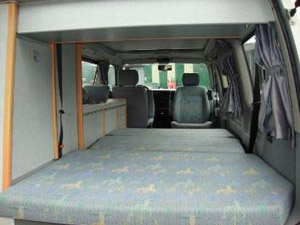

Double bed is 194 cm x 117 cm and bed cushion foam is 8 cm thick.

1995CaliforniaBikerLowerBed

















Wardrobe on the left hand side.

Storage cabinet at the rear left hand side.

Roof storage locker in the rear with a mirror.



Kitchen

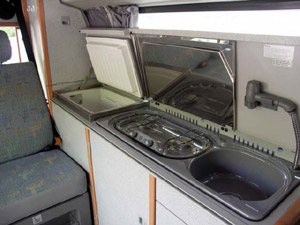

The kitchen cupboard is opposite the sliding door with a sink / cooker combination with an adjustable cover, cutlery drawer and storage for tableware and provisions.

1995CaliforniaBikerKitchen

















Removable gas cooker.

1995CaliforniaHighwayCooker



















Sink dimensions 27 cm long x 27 cm wide x 12 cm deep. Finished in enamelled steel with single tap (with switch for water pump), flexible hose, and adjustable head for jet and shower.

1995CaliforniaHighwaySink

1995CaliforniaHighwaySinkTa

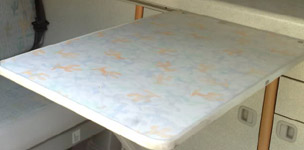

Removable table (72 cm x 40 cm). Stored in rear seat bench.

CaliforniaCoachTableCactus

1995CaliforniaBikerTableTop













Fridge

40 litre Electrolux compressor fridge.

1995CaliforniaBikerFridge

















Freshwater and Wastewater

53 litre freshwater tank.

Filled using a rotating neck at the rear.

1995CaliforniaHighwayRearVi























Emptied outside under the vehicle. Cleaning opening on tank.

Freshwater tank has a submersible pump.

Freshwater line with separate emptying.

27 litre wastewater tank (frost protected inside vehicle). Emptied using tap accessible in kitchen cupboard.

Standard Equipment

Bike rack suitable for up to  4 cycles on the rear tailgate.

1995CaliforniaBikeRack

















Rev counter and digital clock (for all models).

Radio / Cassette “Gamma” and 6 loudspeakers (2 in dashboard, 2 in the door pockets and 2 in the rear roof locker).

1999VWGammaRadio













Front screen antenna.

Two swivelling and folding sunvisors.

Make up mirror with light on passenger side sun visor.

Additional storage under the dashboard in the centre.

Central locking.

Interior light with turn off delay and contact switches on front cab doors.

Electric front windows.

Side cladding with cloth material insert.

Furniture surface finish with “Kactus” design.

Furniture front finish in multicoloured speckle design.

Double tone horn.

Electrically adjustable heated outside mirrors with drivers side flat and passenger side convex.

Light in the sliding door step.

Bumpers pained in same colour as vehicle.

Wheel trim covers.

“Biker” lettering.

Power Steering.

Front Spoiler.

Sliding door on right hand side to access living area.

Closed window aperture for the living area at the rear left.

Locking Fuel Cap.

Rear windscreen with rear wash wipe (not when double glazing is specified).

Two front swivel seats with armrests and  height adjustable head rests.

1997CaliforniaFrontSwivelSe













Height adjustable automatic three point safety belts.

Cigarette Lighter.

Ashtray.

Fresh air supply with 4 speed fan.

Heating with mechanical control.

Drivers cab roof is lined.

Dipping rear view mirror.

Inner light (with separate reading light).

Locking storage under dashboard with cup holder / parking coin holder / light on right hand side.

Open storage under dashboard on left hand side.

Storage trough in the dashboard on the right hand side.

Grab handle in roof frame on the right hand side.

Storage pocket on driver and passenger doors.

Child lock on sliding door.

Two warm air vents in living area supplied by engine temp (ie not night heater).

Floor heating vents with plastic safety covers.

Roof inner cladding with integrated curtain rails.

Radio suppression kit to prevent interference.

9) Options available at extra cost included:

There were many options available at extra cost for your Westfalia T4 California Biker Camper. Below is a list of some of them taken from 07/1995 price list. Prices include tax and are in German Deutschmark :

Airbag on drivers side. Cost 552 DM

Airbag on driver and passenger side with extra storage under dashboard in middle (instead of glovebox and cupholder.) Cost 1,006 DM

Heated windscreen washers. Cost 72.45 DM

Headlight wash / wipe system. Cost 535 DM

Air Filter (protective cover) with filter full indication. Cost 247 DM

Front fog lights. Cost 431 DM

Anti lock braking system (ABS). Cost 2582 DM

Stronger battery (various options dependent on engine spec.). Cost between 71 and 202 DM

Second auxiliary battery (only with night heater). Cost 587 DM

Make up mirror with light for drivers side. Cost 116 DM

Alloy wheels. (7 J x 15):

    with tyres 205/65 R 15 88 S reinforced and wheel cover middle  Cost 1990 DM

Climate control with mechanical control and vents in drivers cab (only with 2.0l and 2.5l otto, with 5 speed must have 60A battery, only with 120A alternator). Not with 1.9 litre turbo diesel or 2.4 litre diesel with automatic gearbox. Cost 3456 DM

Night heater:

    with timer, vents in living area (thermostat and timer in central electric display in the middle above dashboard). Cost 3,071 DM

Towbar (various options dependent on engine spec.). Cost between 811 and 1,012 DM

Stronger alternator:

    Standard for 2.4 litre Diesel motor

    120 Amp (only for 2.0 l with Climate control). Cost 242 DM

    Not for 1.9 litre Turbo diesel motor

Window in living area - sliding window (in tinted glass) with fly net (Front right). Cost 529 DM

Cruise Control. Cost 834 DM

Underbody protection for extreme conditions. Cost 414 DM

Rear mud flaps. Cost 132 DM

Front mud flaps. Cost 132 DM

Front and rear mud flaps. Cost 264 DM

Metallic paint. Cost 2202 DM

Optional equipment package:

    ABS, Double glazed tinted glass, night heater and timer (thermostat and timer in central electric display in the middle above dashboard), Second leisure battery 80 Ah. Cost 3,692 DM

Stabilisers - front (strong) and rear. Cost 483 DM

Anti tamper speedometer (seal with seal wire). Cost 52 DM

Anti tamper speedometer (with paint). Cost 52 DM

10) Accessories available at extra cost included:

There were many accessories available at extra cost for your Westfalia T4 California Biker Camper. Below is a list of some of them taken from xx/xx price list. Prices include tax and are in German Deutschmark

Coming soon !

11) 1995 - 1996 VW Westfalia T4 Transporter California Biker Camper Front,  Rear and Side Logos

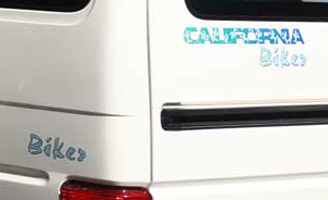

VW Westfalia T4 California Biker front, rear and side logos.

1995CaliforniaBikerLogoFW

1995CaliforniaBikerLogoRSW

















1995 VW T4 Westfalia California Biker Side Logo



















12) Links to Volkswagen Westfalia T4 California Biker Camper Sales Brochures (Prospekt) and Price Lists (Preisliste)

Please note that some of the links take you to an external site called vwpix.org, which is an excellent source of sales literature for all versions of VW camper van. Most of the brochures are in German language as this was the main market.

1995 - 1996 VW Westfalia T4 California Biker Camper Sales Brochures Prospekt Download

August 1995 VW Westfalia T4 Transporter California Biker Camper Sales Brochure Prospekt (4 Pages Colour).



1995 - 1996 VW Westfalia T4 California Biker Camper Accessories Zubehör Download

None yet!



1995 - 1996 VW Westfalia T4 California Biker Camper Price Lists Preisliste Download

July 1995 VW Westfalia T4 Transporter California Biker Camper Price List Preisliste (4 Pages Colour).



For loads more downloads including Owners User Instruction Manuals, Repair Manuals and Equipment Manuals visit the VW T4 Westfalia Camper Downloads Page ;-)



To get notifications when this site is updated subscribe to my VW Camper Blog or Follow Us on Facebook.

If you find the site useful please consider making a small donation to help pay towards the site running and development costs by clicking the Paypal button on the left (You don’t need a Paypal account to make a donation) ;-)





Please read the Disclaimer and Privacy and Cookie Policy before using this site.

© Copyright 2010 -     All rights reserved
