2001 VW Westfalia T4 California Event



The Volkswagen Westfalia T4 Transporter California Event Camper Model History

In 2001 the VW Westfalia T4 Transporter California Event model was introduced. The Westfalia California Event was a special   edition bus to celebrate 50 years of Volkswagen recreational vehicles. The Westfalia California Event was available in poptop version only. The basic model equipment was the same as the 2001 California Coach but it also had some extra equipment fitted as standard and was available in two exterior colours (other colours were available at extra cost). The base vehicle for the VW California Event was the short wheel base “long nose” version of the VW T4 Transporter.

If you find the site useful please consider making a small donation to help pay towards the site running and development costs by clicking the Paypal button on the left (You don’t need a Paypal account to make a donation) ;-)



1) 2001 - 2002 VW Westfalia T4 Transporter California Event Camper engine options and approx price (inclusive tax when new in standard form):

From 06/2001 (2002 model year) price list. Prices are in Euro:

California Event with Poptop Roof

Volkswagen California Event Diesel Motor 2.5 litre TDI Turbo-D Kat, 5 cylinder, 65 KW (88 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 2920 mm,  36,494 Euro

Volkswagen California Event Diesel Motor 2.5 litre TDI Turbo-D Kat, 5 cylinder, 75 KW (102 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 2920 mm,  37,584 Euro

Volkswagen California Event Diesel Motor 2.5 litre TDI Turbo-D Kat, 5 cylinder, 75 KW (102 PS), Automatic Gearbox, load weight 2800 kg, wheelbase 2920 mm,  39,324 Euro

Volkswagen California Event Diesel Motor 2.5 litre TDI Turbo-D Kat, 5 cylinder, 111 KW (150 PS), 5 Speed Gearbox, load weight 2890 kg, wheelbase 2920 mm,  37,584 Euro

2) 2001 - 2002 VW Westfalia T4 Transporter California Event Camper Colour Options

The VW Westfalia California Event Camper was available in standard form in two colours.

N7 Elegance Green Metallic (LB6N) (Elegancegrün metallic)

E2 Nebio Blue Metallic (LL5Y) (Nebioblau metallic)



EleganceGreenMetallic

NebioBlue

2002CaliforniaEventGreen

2002CaliforniaEventNebioBlu























As well as the standard colours above there was an option to specify other colours (at extra cost).

8E Reflex Silver Metallic (LA7W) (Reflexsilber Metallic)

K9 Techno Blue Pearl Effect (LW5Y) (Technoblau Perleffekt)

Q7 Colorado Red Pearl Effect (LB3Y) (Coloradorot Perleffekt)

W7  Dragon Green Pearl Effect (LC6P) (Dragongreen Perleffekt)

Z4 Black Magic Pearl Effect (LC9Z) (Blackmagic Perleffekt)



ReflexSilver

TechnoBlue

ColoradoRedPearlEffect

2002CaliforniaEventSilver

2002CaliforniaEventTechnoBl

























DragonGreenPearl

BlackMagicPearlEffect

2003CaliforniaEventGreen

2002CaliforniaEventBlack























Also it was possible at extra cost to specify a two tone finish with a base colour with a darker lower stripe (called “ton in ton” translating to “tone on tone”) in the following combinations:

8E2V Reflex Silver Metallic (Reflexsilber Metallic) (LA7W) / Dark Reflex Silver (Darkreflexsilber Metallic) (LV7B)

darkreflexsilver







2002CaliforniaEventTonOnTon

















E24V Nebio Blue Metallic (Nebioblau metallic) (LL5Y) / Dark Nebio Blue (Darknebioblau Metallic) (LV5W)

darknebioblue









N76V Elegance Green Metallic (Elegancegrün metallic) (LB6N) / Dark Elegance Green (Darkelegancegrün metallic) (LV6W)

darkelegancegreen







K95V Techno Blue Pearl Effect (Technoblau Perleffekt) (LW5Y) / Dark Techno Blue (Darktechnoblau Perleffekt) (LV5U)

darktechnoblue

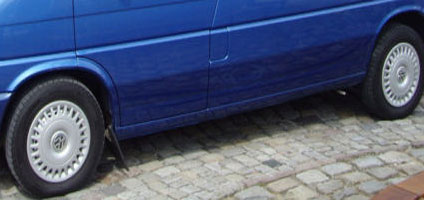

2002CaliforniaEventBlueTonO

















Q73V Colorado Red Pearl Effect (Coloradorot Perleffekt) (LC6P) / Dark Colorado Red (Darkcoloradorot Perleffekt) (LV3Z)

darkcoloradored











3) 2001 - 2002 VW Westfalia T4 Transporter California Event Camper Furniture Specification

The 2001 - 2002 VW Westfalia T4 Transporter California Event Camper layout consisted of:

CaliforniaCoachLayout1999

















1) Swivel Seats.

2) Table.

3) Slideable Seat.

4) Sink.

5) Gas cooker, removable.

6) Compressor fridge.

7) Wardrobe (upper) / Auxiliary battery (lower).

8) Bed extension (upper) / Luggage compartment (lower).

9) Storage (upper) / Cubby hole for gas bottle (lower).

10) Freshwater tank. Filled from outside.



2001 - 2002 VW Westfalia T4 Transporter California Event Camper Interior Photos

The Volkswagen Westfalia California Event camper had grey / multicoloured speckle furniture with a beech wood colour edging. The upholstery could have either a grey with multicoloured cactus patterned fabric (kaktus design) or a grey material with coloured cubes (Step by Step design).

Cactus Interior (Flannellgrau WL)



2002CaliforniaEventCacInt1























Step By Step Interior (Flannellgrau UC)

2002CaliforniaEventInt2

2002CaliforniaEventInt5

2002CaliforniaEventInt7

2002CaliforniaEventInt4

2002CaliforniaEventInt1

2002CaliforniaEventInt6

1999CaliforniaAdvantageInt7

2002CaliforniaEventInt3

2002CaliforniaEventInt8

































4) 2001 - 2002 VW Westfalia T4 California Event Camper Upholstery Specification

It was possible to choose from two upholstery designs for the VW Westfalia T4 California Event camper for driver, passenger and rear seat/bed either:

A Jacquard woven design using a grey material with multi coloured cactus pattern known as “Kactus” (Flannellgrau WL).

CactusMaterial

1995CaliforniaHighwayCactus













Or a grey material with multi coloured square pattern known as “Step by Step” (Flannellgrau UC).

stepbystepmaterialLarge

StepByStepMaterial













The curtains for sides and rear in the VW Westfalia T4 California Event camper were grey.

1995CaliforniaCoachCurtains

















5) 2001 - 2002 Volkswagen Westfalia T4 California Event Camper Pop Top Roof Specification

2002CaliforniaEventRoofBed

















The pop top roof outside finish for the VW Westfalia California Event Camper was in the same colour as the vehicle.

The inside headroom of the vehicle with poptop was 135 cm.

Upper bed in poptop is 194 cm x 106 cm and  bed cushion foam is 5.5 cm thick.

Ventilation window with mosquito nets in the sides of the roof canvas.

Vehicle with pop top roof can potentially have sleeping space for four people.

6) 2001 - 2002 Volkswagen Westfalia T4 California Event Camper Flooring and Carpeting Specification

The flooring in the rear of the VW Westfalia T4 California Event camper was a hard wearing grey PVC material with multi coloured flecks. The step is made from grey plastic.

1998CaliforniaJokerRearFloo

1995CaliforniaCoachFlooring

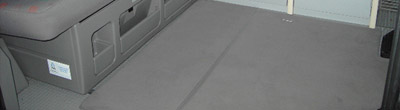

Grey velour carpet floor lining in drivers cab and carpet over mat in rear living area.

2002CaliforniaEventRearCarp











7) 2001 - 2002 Volkswagen Westfalia T4 California Event Camper Door Trim Specification

Door interior trims made from grey plastic with material cloth insert. Lockable drivers door pocket.

2002CaliforniaEventDoorTrim



















8) 2001 - 2002 Volkswagen Westfalia T4 California Event Camper Standard Model Specification

Exterior Dimensions

Length - 4789 mm (short wheelbase).

Width - 1840 mm

Height - Poptop 1990 mm

Windows

Laminated Windscreen in tinted glass.

Drivers cab windows windows in tinted glass.

Double glazed windows in rear living area.

Sliding window in front left above kitchen opposite the sliding door.

Curtains

Grey curtains all round for the living and cab area.

Electrical

220 volt External CEE Hook Up socket on the outer wall at the rear left with one internal outlet socket in living area and safety trip cut out (FI/LS 0.01/13A).

Automatic battery charger (13.8V / 10 A).

Leisure battery 12V 80 Ah (maintenance free) (12V 135 Ah with night heater) with split charge relay for equipment in living area (fridge etc). Charged by alternator or battery charger.

Alternator 90 Amp (or 120 Amp for 2.5 litre TDI motor).

12V socket in living area.

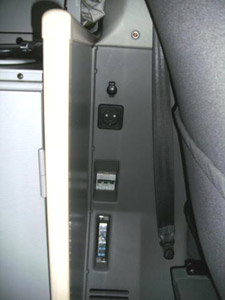

Fuses for electrical equipment.

1999CaliforniaCoachFuses



Central electronic control unit in drivers cab above the mirror with LCD display for outside temperature, charge level of the batteries, 220 V connection, operating status of the fridge, freshwater / waste water tank levels, push button adjustment for fridge temperature and operation of the night heater.

1994CaliforniaCoachCentralE













Dual tone horn.

Halogen headlights with range adjustment.

Two reversing lights.

Rear fog light.

Anti theft system with immobilizer “Transponder”.

Adjustable instrument panel lights.

Warning light for hand brake, brake circuit failure and brake fluid level.

Windscreen wipers with intermittent, two speed and wash / wipe functions.

Two 11 Watt transistor lights.

One swan neck 5 Watt halogen light.

Living / Bedroom Area

Two person seat bench that slides and folds to make a double bed in conjunction with rear bed cushion.

Rear seat bench has two three point automatic safety belts.

Two headrests in rear seat.

Storage compartment under the seat bank.

Three storage compartments in the seat bank front.

2002CaliforniaEventRearSeat

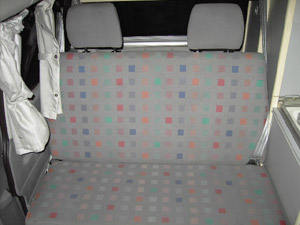

2002CaliforniaEventRearSea1

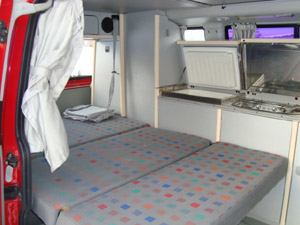

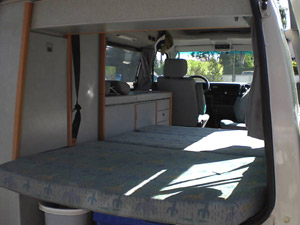

Double bed is 194 cm x 117 cm and bed cushion foam is 8 cm thick.

1995CaliforniaHighwayLowerB

1999CaliforniaCoachBed

















Wardrobe on the left hand side.

Storage cabinet at the rear left hand side.

Roof storage locker in the rear with a mirror.

Kitchen

The kitchen cupboard is opposite the sliding door with a sink / cooker combination with an adjustable cover, a cutlery drawer (with integrated cutlery insert) inside the cupboard and storage for tableware and provisions.

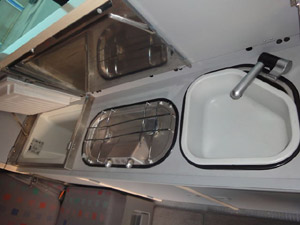

2002CaliforniaEventKitchen1

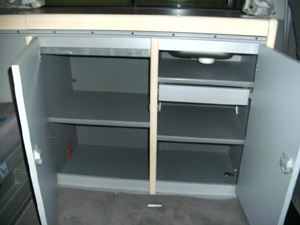

2002CaliforniaEventKitchen2

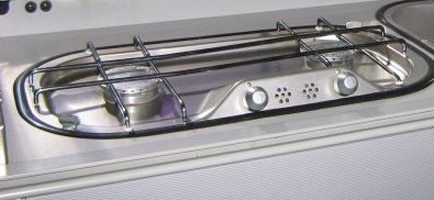

Removable gas cooker with two burners (performance between 1100W and 1800W, consumption at rated power approx 0.40 litre / hour), powered using “Campinggaz” Bottle 907 (2.8 Kg), safety gas bottle vent, gas pressure regulator, with quick release connection with shut off valve.

.

1995CaliforniaHighwayCooker

1999CaliforniaCoachCooker



















Gas bottle is stored in special rear cupboard.

1999CaliforniaCoachGasBottl

2002CaliforniaEventRearGas

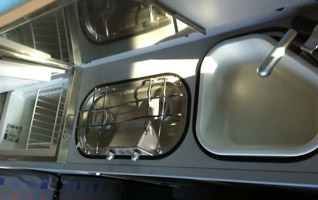

Stainless steel sink (with removable washing up bowl) and electric tap.

2002CaliforniaEventStove

















Removable table (72 cm x 40 cm). Stored in rear seat bench.

1999CaliforniaAdvantageRear













Fridge

40 litre Electrolux compressor fridge.

2002CaliforniaEventFridge

















Freshwater and Wastewater

25 litre freshwater tank.

Filled through a filler cap on left hand side of vehicle.

2002CaliforniaEventFiller

















Emptied outside under the vehicle. Cleaning opening on tank.

Freshwater tank has a submersible pump.

Freshwater line with separate emptying.

27 litre wastewater tank (frost protected inside vehicle). Emptied using tap accessible in kitchen cupboard.

Standard Equipment

Speedometer with resettable mileage trip.

Rev counter and digital clock.

2002CaliforniaEventSpeedo













Climate control with mechanical regulation.

Optic package with bumpers, side mirrors and rear tailgate handle surround in same colour as vehicle.

VW Votex Logo Bike Rack 7D4 071 104 for up to 4 cycles on rear tailgate.

CaliforniaEventCycleRack

















Carpet floor mat in both drivers cab and rear living area.

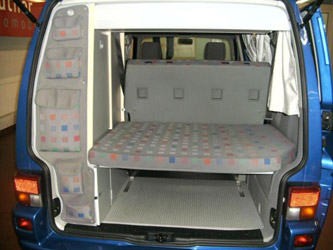

Storage pocket system on rear wardrobe.

2001CaliforniaEventPockets



















Two cushions that match the interior upholstery design.

2001CaliforniaEventCushions

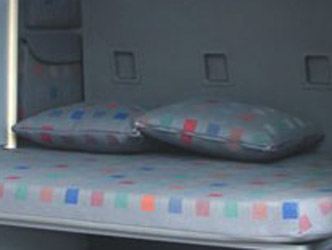

2002CaliEventCushions



















ABS / EDS.

Power Steering.

Airbags for driver and passenger.

Screw on front wings (cheaper to repair).

Front indicators in white.

Heated windscreen washer.

Slide rail for sliding door in black.

Electrically adjustable and heated side mirrors.

Electric drivers cab windows.

Central locking with remote control.

Sliding door on right hand side to access living area.

Warning buzzer for switched on electrical equipment.

Locking Fuel Cap.

Rear windscreen with rear wash wipe.

Two front swivel seats with armrests and height adjustable head rests.

1997CaliforniaFrontSwivelSe

1999CaliforniaCoachFrontSea













Height adjustable automatic three point safety belts.

Padded dashboard.

Fuel and temp gauge.

12V outlet with cigarette lighter.

Ashtray.

Fresh air supply with 4 speed fan.

Heated and fresh air ventilation with dust and pollen filter.

Heating with mechanical control.

Two swivelling and folding sunvisors.

Make up mirror with light on driver and passenger side sun visor.

Drivers cab roof is lined.

Dipping rear view mirror.

Inner light (with separate reading light).

Switchable light in the sliding door step.

Storage cubby hole in middle under dashboard.

2001CaliforniaEventCubby















Open storage under dashboard on left hand side.

Storage trough in the dashboard on the right hand side.

Storage pocket below dashboard in centre.

Grab handle on the sliding door side left.

Strap on the sliding door side right.

Grab handle in roof frame on the right hand side.

Storage pocket on driver and passenger doors.

Child lock on sliding door.

Two warm air vents in living area supplied by engine temp (ie not night heater).

Floor heating vents with plastic safety covers.

Roof inner cladding with integrated curtain rails.

Side cladding with cloth material insert.

Radio suppression kit to prevent interference.

Interior light with turn off delay and contact switch on cab doors.

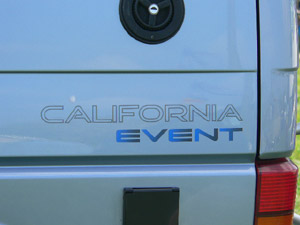

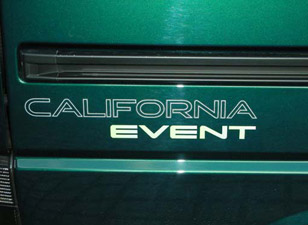

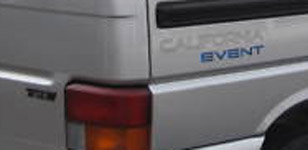

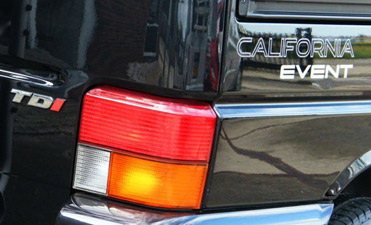

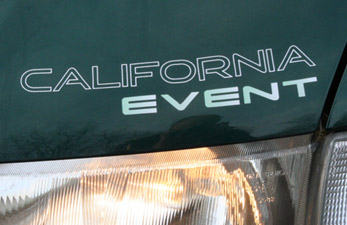

“California Event” lettering.

Wheel trims.

Separate heating and ventilation control for the living area located next to light above kitchen block.

HeaterControlCoach













9) Options available at extra cost included:

There were many options available at extra cost for your Westfalia T4 California Event Camper. Below is a list of some of them taken from 06/2001 (2002 model year) price list. Prices include tax and are in Euro:

Towbar with removable towing hitch. Cost 673 Euro

CD Changer (6 CD) in the middle console (only with radio “beta” or with radio navigation system). Cost 452 Euro

Electronic Stability Program (ESP) (not with higher total weight option). Cost 904 Euro

Window in drivers cab:

    Front screen in insulating glass. Cost 226 Euro

Windows in living area:

    Double glazed sliding window in living area, additional at front right (sliding part of sliding window in normal glass). Cost 232 Euro.

    Dark coloured windows instead of double glazed. Cost no charge

    If dark windows chosen - matching sliding window in living area, additional at front right. Cost 232 Euro.

    Bonoplex opening window instead of sliding window in living area at front left (note to be added). Cost N/A Euro.

    If dark windows chosen - matching Bonoplex opening window at front left (note to be added).. Cost N/A Euro.

Comfort Package 1. Cost 406 Euro:

    Multi function display (MFA)

    Cruise Control.

    (Not when navigation system is specified).

Reflex silver metallic paint. Cost 110 Euro

Pearl effect paint. Cost 70 Euro

”Ton on Ton” - Tone on Tone paint. Cost 261 Euro

Light and Sight:

    Headlight wash / wipe system and front fog lights. Cost 382 Euro

Air filter (dust protection) with filter saturation indicator. Cost 265 Euro

Navigation System. Cost 2639 Euro:

    With colour Multifunction Display (MFD) and cruise control.

2002CaliforniaEventMFDColou

















    Visual route display both using the icons in the display screen in the direct view of the driver (MFA) and also on the map navigation display (swivel) in the middle of the dashboard.

    Dynamic route guidance via RDS TMC

    Acoustic driving recommendations.

    GPS Antenna.

    Front screen antenna.

    Stereo radio installation (with radio “Gamma” but without cassette deck).

    6 loudspeakers (2 in the dashboard, 2 in the drivers cab doors and 2 in the living area).

    CD-Rom for Germany.

Front fog lights (when ordered separately from “light and sight” package). Cost 226 Euro

Total weight:

    Increase the total vehicle weight allowance to 2890 kg (standard on TDI (111Kw) engine, not with alloy wheels). Cost 203 Euro



4 Alloy wheels (BBS design). (7 J x 15 H2), not with TDI (111 Kw) engine option. Cost 650 Euro

4 Alloy wheels (7 J x 16 H2) with tyres 225/60 R 16 102 H reinforced, only with TDI (111 Kw) engine option. Cost 887 Euro

All year tyres 205/65 R 15 C 100 T, not with TDI (111 Kw) engine option. Cost 42 Euro

Mud + Snow tyres 205/60 R 16 C 100 T (only with TDI (111 Kw) engine option but not with alloy wheels). Cost 96 Euro

Mud + Snow tyres 205/65 R 15 C 100 T (not with TDI (111 Kw) engine option). Cost 145 Euro

Radios (stereo) see also CD Changer and Navigation system:

    radio “Beta” (Stereo radio cassette), 4 loudspeakers, front screen antenna. Cost 476 Euro

    radio “Gamma” (Stereo radio cassette) 6 loudspeakers, front screen antenna. Cost 638 Euro

Front and rear mud flaps. Cost 146 Euro

Heated drivers cab seats. Cost 360 Euro

Preparation for telephone installation (only with Radio or when navigation system is specified). Cost 365 Euro

Telephone installation -as above but includes Nokia 6210 mobile phone (only with Radio or when navigation system is specified). Cost 876 Euro

Underbody protection for extreme conditions. Cost 220 Euro

Winter Package 3. Cost 1914 Euro:

    Heated drivers cab seats.

    Night heater (2.5 kW output) with timer (outlet only in living area).



10) Accessories available at extra cost included:

There were many accessories available at extra cost for your Westfalia T4 California Event Camper. Below is a list of some of them taken from xx/xx price list. Prices include tax and are in Euro

Coming soon !



11) 2001 - 2002 VW Westfalia T4 Transporter California Event Camper Front and Side Logos

VW Westfalia T4 California Event front and side logos.

2002CaliforniaEventSiLogoF
2002CaliforniaEventSideLogo
CaliforniaEventLogoFrontBlu
CaliforniaEventLogoSideBlue

CaliEventLogoFG

CaliforniaEventLogoSideGree



2002CaliEventRearLogoBlack

CaliforniaEventFLogoBlue

CaliforniaEventSLogoBlue



VW Westfalia California Event anniversary badge on dashboard.

2003CaliforniaEvemtDashBadg

2002CaliforniaEventDashBadg













12) Links to Volkswagen Westfalia T4 California Event Camper Sales Brochures (Prospekt) and Price Lists (Preisliste)

Please note that some of the links take you to an external site called vwpix.org, which is an excellent source of sales literature for all versions of VW camper van. Most of the brochures are in German language as this was the main market.

2001 - 2002 VW Westfalia T4 California Event Camper Sales Brochures Prospekt Download

August 2001 VW Westfalia T4 California Event Sales Brochure Prospekt (7 Pages Colour).



2001 - 2002 VW Westfalia T4 California Event Camper Accessories Zubehör Download

None yet!



2001 - 2002 VW Westfalia T4 California Event Camper Price Lists Preisliste Download

June 2001 VW Westfalia T4 California Event Price List Preisliste (6 Pages Colour).



For loads more downloads including Owners User Instruction Manuals, Repair Manuals and Equipment Manuals visit the VW T4 Westfalia Camper Downloads Page ;-)



To get notifications when this site is updated subscribe to my VW Camper Blog or Follow Us on Facebook.

If you find the site useful please consider making a small donation to help pay towards the site running and development costs by clicking the Paypal button on the left (You don’t need a Paypal account to make a donation) ;-)





Please read the Disclaimer and Privacy and Cookie Policy before using this site.

© Copyright 2010 -     All rights reserved
