The Volkswagen Westfalia T4 Transporter California Exclusive Camper Model History Circa 1996 Volkswagen made changes to to the base model T4 transporter. The old model became known as the “short nose” version and the new model as the “long nose”. Although both versions look fairly similar the main changes related to the front doors, front wings, bonnet, front grills and headlights. The changes were made to increase the engine bay size in order to accommodate the new VR6 engine option. At the same time the above changes were made Westfalia updated the T4 Transporter California Exclusive model. The external colour and engine options were updated and the standard equipment specification improved (when compared with the original 1994 - 1996 version). If you find the site useful please consider making a small donation to help pay towards the site running and development costs by clicking the Paypal button on the left (You don’t need a Paypal account to make a donation) ;-)
1) 1996 - 2003 VW Westfalia T4 Transporter California Exclusive Camper engine options and approx price (inclusive tax when new in standard form): From 06/1996 (1997 model year) price list unless stated. Prices are in German Deutschmark: Volkswagen California Exclusive Petrol Otto Kat Motor 2.5 litre, 5 cylinder, 81 KW (110 PS), circa 1997 changes to 85 kW (115 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 3320 mm, 67,890 DM (available up to circa 2001 and then not an option for California Exclusive). Volkswagen California Exclusive Petrol Otto Kat Motor 2.5 litre, 5 cylinder, 81 KW (110 PS), circa 1997 changes to 85 kW (115 PS), Automatic Gearbox, load weight 2800 kg, wheelbase 3320 mm, 71,156 DM (available up to circa 2001 and then not an option for California Exclusive). Volkswagen California Exclusive Petrol Otto Kat Motor 2.8 litre VR6, 6 cylinder, 103 KW (140 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 3320 mm, 72,893 DM (available up to circa 2001 and then not an option for California Exclusive). Volkswagen California Exclusive Petrol Otto Kat Motor 2.8 litre VR6, 6 cylinder, 103 KW (140 PS), Automatic Gearbox, load weight 2800 kg, wheelbase 3320 mm, 76,159 DM (available up to circa 2001 and then not an option for California Exclusive). Volkswagen California Exclusive Diesel Motor 1.9 litre Turbo-D Kat, 4 cylinder, 50 KW (68 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 3320 mm, 62,239 DM (available up to circa 2001 and then not an option for California Exclusive). Volkswagen California Exclusive Diesel Motor 2.4 litre SD, 5 cylinder, 55 KW (75 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 3320 mm, (available from 1997 up to circa 2001 -Cost 62,309 DM in 1999 and then not an option for California Exclusive). Volkswagen California Exclusive Diesel Motor 2.4 litre, 5 cylinder, 57 KW (78 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 3320 mm, 65,677 DM (available up to circa 2001 and then not an option for California Exclusive). Volkswagen California Exclusive Diesel Motor 2.5 litre TDI, 5 cylinder, 65 KW (88 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 3320 mm, (Introduced 05/1999 price list 73,921 DM, available up to circa 2001 and then not an option for California Exclusive).) Volkswagen California Exclusive Diesel Motor 2.5 litre TDI, 5 cylinder, 75 KW (102 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 3320 mm, 69,414 DM Volkswagen California Exclusive Diesel Motor 2.5 litre TDI, 5 cylinder, 75 KW (102 PS), Automatic Gearbox, load weight 2800 kg, wheelbase 3320 mm, (Introduced 05/1999 price list 79,385 DM) Volkswagen California Exclusive Diesel Motor 2.5 litre TDI, 5 cylinder, 111 KW (150 PS), 5 Speed Gearbox, load weight 2890 kg, wheelbase 3320 mm, (Introduced 01/2001 price list 85,634 DM) 2) 1996 - 2003 VW Westfalia T4 Transporter California Exclusive Camper Colour Options The new updated VW Westfalia California Exclusive Camper was available initially in 5 colours. T7 Grey White (L902) (Grauweiß) X8 Friesian Green (LL6T) (Friesengrün) E9 Island Blue Metallic (LL5Z) (Islandblau Metallic) SK9098 Soft Green Metallic (LB6P) (Softgrün Metallic) E1 Hot Chilli Red Pearl Effect (LC3L) (Hotchilired Perleffekt)
By 1999 the colours Friesian Green, Island Blue Metallic, Soft Green Metallic and Hot Chilli Red Pearl Effect seem to have been replaced by new colours: 6U Ontario Green (LH6J) (Ontariogrün) G2 Tornado Red (LY3D) (Tornadorot) N7 Elegance Green Metallic (LB6N) (Elegancegrün Metallic) K9 Techno Blue Pearl Effect (LW5Y) (Technoblau Perleffekt) Q7 Colorado Red Pearl Effect (LB3Y) (Coloradorot Perleffekt)
By 2001 the colours Ontario Green and Grey White seem to have been replaced with: 8E Reflex Silver Metallic (LA7W) (Reflexsilber Metallic) E2 Nebio Blue Metallic (LL5Y) (Nebioblau Metallic)
Although not listed in the sales brochures I have seen so far I have also found the following colours: 7D Indigo Blue Pearl Effect (LB5N) (Indigoblau Perleffekt) W7 Dragon Green Pearl Effect (LC6P) (Dragongruen Perleffekt) Z4 Black Magic Pearl Effect (LC9Z) (Blackmagic Perleffekt)

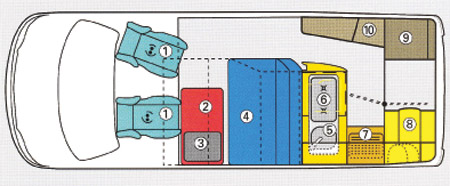

3) 1996 - 2003 VW Westfalia T4 Transporter California Exclusive Camper Furniture Specification The 1996 - 2003 VW Westfalia T4 Transporter California Exclusive Camper layout consisted of:
1) Swivel Seats. 2) Removable Table. 3) Additional Fold Out Table. 4) Slidable Seat. 5) Sink. 6) Gas cooker. 7) Fridge. 8) Bathroom. 9) Wardrobe. 10) Extension cupboard.
1996 - 2003 VW Westfalia T4 Transporter California Exclusive Camper Interior Photos The Volkswagen Westfalia California Exclusive camper had grey / multicoloured speckle furniture with a beech wood colour edging. The upholstery was a grey / multicoloured cactus patterned fabric.
4) 1996 - 2003 VW Westfalia T4 California Exclusive Camper Upholstery Specification The upholstery material in the VW Westfalia T4 California Exclusive camper for driver, passenger and rear seat / bed was a Jacquard woven design using a grey material with multi coloured cactus pattern known as “Kactus”.
The curtains for sides in the VW Westfalia T4 California Exclusive camper were grey.
5) 1996 - 2003 Volkswagen Westfalia T4 California Exclusive Camper High Top Roof Specification The high top roof outside finish for the VW Westfalia California Exclusive Camper is in the same colour as the vehicle. High top is insulated with 30mm thick mineral wool. The inside headroom of the vehicle with hightop was 205 cm. Two opening side windows in roof (one on each side) with mosquito nets and black out for sleeping (double roller blinds). Roof air vent (middle) with mosquito net, sloping and parallel adjustment.
Upper bed in hightop is 200 cm x 107 cm and bed cushion foam is 6.5 cm thick. Fixing point for awning (right side) and sport rack (left and right side) up to max 25 Kg load. 6) 1996 - 2003 Volkswagen Westfalia T4 California Exclusive Camper Flooring and Carpeting Specification The flooring in the rear of the VW Westfalia T4 California Exclusive camper was a hard wearing grey PVC material with multi coloured speckles. The step is made from grey plastic.
Velour carpet floor lining in drivers cab. 7) 1996 - 2003 Volkswagen Westfalia T4 California Exclusive Camper Door Trim Specification Door interior trims made from grey plastic with cloth insert.
8) 1996 - 2003 Volkswagen Westfalia T4 California Exclusive Camper Standard Model Specification Exterior Dimensions Length - 5189 mm (long wheelbase). Width - 1840 mm Height - Hightop 2599 mm (VR6 is 2579 mm) Windows Double glazed windows in rear living area. Insulation Insulated in the side walls of the living area with 10 mm thick PE matting. Curtains Grey curtains all round for the living and cab area. Electrical 220 volt External CEE Hook Up socket on the outer wall at the rear right behind the waste disposal flap with two internal outlet socket in living area and safety trip cut out (FV/LS 0.01/13A). Hook up adaptor cable is included. Automatic battery charger (13.8 V 10 A). Leisure battery 12V 135 Ah (maintenance free) with split charge relay for equipment in living area (fridge etc). Charged by alternator or battery charger. Central electronic control unit in drivers cab above the mirror with LCD display for outside temperature, charge level of the batteries, operating status of the cool box / fridge, freshwater / waste water tank levels, push button adjustment for cool box / fridge temperature and temperature and timer controls for Eberspacher heater.
Single tone horn (dual tone horn was an optional extra until circa 1998 when it became standard). Halogen headlights with range adjustment. Two reversing lights. Rear fog light. Adjustable instrument panel lights. Courtesy light with switchable delay and contacts on the cab doors. Warning light for hand brake, brake circuit failure and brake fluid level. Windscreen wipers with intermittent, two speed and wash / wipe functions. Three 11 Watt transistor lights (Warmton). Living / Bedroom Area Two person seat bench that slides and folds to make a double bed in conjunction with separately stored bed extension. Has a folding and adjustable armrest on right hand side. Rear seat bench has two three point automatic safety belts. Two headrests in rear seat. Storage compartment under the seat bank. Three storage compartments in the seat bank front.
Double bed is 189 cm x 112 cm.
Fold out table with support foot on the left side wall under the opening window (37 cm x 33 cm).
Dining table with support leg on the left side wall above the folding table (101 cm x 41.4 cm). Table top stored in the wardrobe.
Kitchen The kitchen is at the rear left of the vehicle and has a sink / cooker combination with cupboard underneath.
Cabinet on the left side wall with fridge that has a shaped lid for draining dishes. Wardrobe at the rear right with folding door, telescopic clothes rail, locking valuables safe box. Unit on right hand side with one drawer, two doors, two shelves and a garbage bag holder. Shelves above the right hand side unit in the hightop area and also below the fold out table. Roof storage lockers with louvre doors at rear left in kitchen area and bathroom. Gas cooker with two burners (performance between approx 1000W - 1800 W. Consumption at rated output is approx 140g / hour). Gas bottle “Camping Gaz 907 (2.8kg). Gas pressure regulator, quick release connection with shut off valve for gas connection. Separator made from 6 mm thick safety glass with chrome nickel edging between cooker and backrest of seat bank.
Sink with electric tap.
Fridge 40 litre Electrolux compressor fridge.
Bathroom Bathroom is at the rear of vehicle.
Fold down wash basin in the left hand side wall moulding with fixed tap and drain outlet. “Thetford” cassette toilet with 20 litre holding tank and electric water flush. Hinged door between bathroom and living area (with 180 degree hinge action). Mirror on the back of the door inside bathroom. Freshwater and Wastewater 55 litre freshwater tank (08/1997 brochure states capacity is 47 litres and 08/2001 brochure states capacity is 49 litres). 65 litre wastewater tank (frost protected inside vehicle) 08/2001 brochure states capacity is 63 litres. Level display. Emptied using drain connection with valve located under the vehicle. Standard Equipment Driver and Passenger Airbags. Storage cubby hole in middle under dashboard. Disk brakes also on rear. New combined ABS / EDS system (Standard when VR6 motor is ordered / optional extra when other motors specified until 1997 and then standard on all models). Low noise exhaust system. Screw on front wings (cheaper to repair). Reversible Bumper. Better sound proofing in cab and living area. Padded instrument panel with improved equipment. Driver and passenger seat on roller bearings (for easier seat adjustment). Improved engine mounting system. New 5 speed gearbox for TDI and VR6 motors. Central locking with radio remote control (optional extra until 10/1999 then fitted as standard). Electric driver and passenger windows (optional extra until 10/1999 then fitted as standard). Electrically adjustable and heated outer side mirrors (optional extra until 1999 then fitted as standard). Night heater with timer (optional extra until 08/2001 then fitted as standard). Climate Control in drivers cab (optional extra until 08/2001 then fitted as standard). Heated seats in drivers cab (believed to be an optional extra until 08/2001 then fitted as standard). Preparation for radio installation with front screen aerial and 6 loudspeakers (2 in the dashboard, 2 in the drivers door storage pockets and 2 in the living area at the rear. Anti theft system with immobilizer. Solid rear panel (instead of tailgate) in composite construction (GRP) with 30 mm thick insulating layer of mineral wool and attachments for luggage rack or bicycle rack (rear load max 40 kg).
Waste disposal flap for toilet.
Interior light with turn off delay. Rear step has built in light that can be switched off. Power Steering. Front Spoiler. Laminated Windscreen Adjustable outside mirrors with drivers side flat and passenger side convex. Sliding door on right hand side to access living area. Locking Fuel Cap. Bumpers in black. Two front swivel seats with armrests and height adjustable head rests. Height adjustable automatic three point safety belts. Speedometer with resettable digital kilometre display and mileage trip, rev counter and digital clock. Warning buzzer for switched on electrical equipment. Heated windscreen washer. Heated and fresh air ventilation with dust and pollen filter. Cigarette Lighter. Ashtray. Fresh air supply with 4 speed fan. Heating with mechanical control. Two swivelling and folding sunvisors. Make up mirror with light on passenger side sun visor. Dipping rear view mirror. Inner light (with separate reading light). Locking storage under dashboard on right hand side. Open storage under dashboard on left hand side. Storage trough in the dashboard on the right hand side. Grab handle in roof frame on the right hand side. Storage pocket on passenger door. Child lock on sliding door. Two warm air vents in living area supplied by engine temp (ie not night heater). Floor vents with plastic safety cover. Roof inner cladding with integrated curtain rails. Radio suppression kit to prevent interference. Wheel trims. Separate heating and ventilation control for the living area located next to fold out table (Introduced circa 1999).
Cup Holder (possibly not until 1997). Electronic Stability Program (ESP) - Standard with VR6, optional extra on other models (Introduced circa 2001). Heated drivers cab seats (Introduced as an option in 1999 and then standard equipment by 2001). 9) Options available at extra cost included: There were many options available at extra cost for your Westfalia T4 California Exclusive Camper. Below is a list of some of them taken from 06/1996 (1997 model year) price list unless stated. Prices include tax and are in German Deutschmark: Towbar . Cost 978 DM Preparation for fitting of towbar. Cost 213 DM Anti lock braking system (ABS / EDS) (Standard on VR6 and an option on other models until 1997 when it was standard on all models). Cost 1840 DM Electrically adjustable and heated outer mirrors: on drivers side aspherical and on passenger side convex. Cost 472 DM Stronger battery (various options dependent on engine spec.). Cost between 107 and 207 DM Dual tone horn (dual tone horn was an optional extra until circa 1998 when it became standard). Cost 92 DM Stronger alternator: 120 Amp (not for 1.9 turbo diesel motor). Cost 247 DM Windows in cab area: Tinted glass instead of clear glass. Cost 328 DM Windows in living area: Sliding window (double glazed apart from sliding part of sliding window), front right. Cost 443 DM. Electric cab windows (only when electric mirrors are specified as an option). Cost 817 DM Cruise control (not with 2.5 l TDI motor). Cost 851 DM Night heater: with timer, outlet only in living area, temperature and timer control via central electronic control unit in the middle of the dashboard. 3071 DM Climate control with mechanical control and vents in drivers cab (the 2.5 l otto, with 5 speed must have 60A battery, with 2.5 l otto, 2.5 l TDI and 2.4 l diesel and 2.8 l VR6 must have stronger 120 Amp alternator, not with 1.9 l turbo diesel motor ). Cost 3456 DM Metallic paint. Cost 2243 DM Pearl effect paint. Cost 2243 DM Air filter (dust protection) with filter saturation indicator. Cost 253 DM Make up mirror with light for drivers side. Cost 118 DM Front fog lights. Cost 431 DM Total weight: Increase the total vehicle weight allowance to 2810 kg. Cost N/A Increase the total vehicle weight allowance to 2890 kg (not with alloy wheels) (Introduced 05/1999 price list 389 DM) Standard with VR6 and TDI (111 KW) on 01/2001 price list Alloy wheels. (7 J x 15 H2). Cost 1127 DM All year tyres 205/65 R 15 C 100 T. Cost 76 DM Mud + Snow tyres 205/65 R 15 C 100 T. Cost 276 DM Radios (stereo): radio “Gamma” (Stereo radio cassette). Cost 851 DM Headlight wash / wipe system. Cost 546 DM Rear mud flaps. Cost 135 DM Front mud flaps. Cost 135 DM Front and rear mud flaps. Cost 270 DM Anti tamper speedometer (with seal). Cost 53 DM Underbody protection for extreme conditions. Cost 420 DM Central locking. Cost 868 DM Comfort Package 1. (Introduced 05/1999 price list 545 DM) Cruise Control. Additional make up mirror with light for driver. Courtesy light with switchable delay and contacts on the cab doors. Light and sight. (Introduced 05/1999 price list 731 DM) Front fog lights. Headlight wash / wipe system. Winter package 3 (Introduced 05/1999 price list 3,944 DM was standard equipment by 2001) Heated drivers cab seats Night heater with timer. CD Changer (6 CD) in the middle console (only with radio “beta” or with radio navigation system). (Introduced 01/2001 price list 452 DM) Electronic Stability Program (ESP) (Standard with VR6, only available for TDI (75 KW, 111 KW), not with higher total weight option). (Introduced 01/2001 price list 905 DM) Heated drivers cab seats (Introduced 05/1999 price list 696 DM and then standard equipment by 2001).
Radio navigation system with monochrome display. (Introduced 01/2001 price list 3845 DM) Visual route display both using the icons in the display screen in the direct view of the driver (MFA) and also on the navigation display in the middle of the dashboard. Dynamic route guidance via RDS TMC Acoustic driving recommendations. GPS Antenna. Stereo radio installation (with radio “Beta” without cassette deck) together with Traffic Information Memory (TIM) and fader. CD-Rom for Germany. Radio navigation system with colour multi function display (MFD). (Introduced 01/2001 price list 5275 DM) Visual route display both using the icons in the display screen in the direct view of the driver (MFA) and also on the map navigation display (swivel) in the middle of the dashboard. Dynamic route guidance via RDS TMC Acoustic driving recommendations. GPS Antenna. Stereo radio installation (with radio “Gamma” but without cassette deck). CD-Rom for Germany.
10) Accessories available at extra cost included: There were many accessories available at extra cost for your Westfalia T4 California Exclusive Camper. Below is a list of some of them taken from xx/xxx price list. Prices include tax and are in German Deutschmark Coming soon !
11) 1996 - 2003 VW Westfalia T4 Transporter California Exclusive Camper Front and Rear Logos VW Westfalia T4 California Exclusive front and rear logos.
12) Links to Volkswagen Westfalia T4 California Exclusive Camper Sales Brochures (Prospekt) and Price Lists (Preisliste) Please note that some of the links take you to an external site called vwpix.org, which is an excellent source of sales literature for all versions of VW camper van. Most of the brochures are in German language as this was the main market. 1996 - 2003 VW Westfalia T4 California Exclusive Camper Sales Brochures Prospekt Download
1996 - 2003 VW Westfalia T4 California Exclusive Camper Accessories Zubehör Download September 1997 VW Westfalia T4 California Exclusive Accessories Zubehör (8 Pages Colour). December 1999 VW Westfalia T4 California Exclusive Accessories Zubehör (20 Pages Colour). October 2000 VW Westfalia T4 California Exclusive Accessories Zubehör (24 Pages Colour).
1996 - 2003 VW Westfalia T4 California Exclusive Camper Price Lists Preisliste Download August 2002 VW Westfalia T4 California Exclusive Price List Preisliste (6 Pages Colour).
1996 - 2003 VW Westfalia T4 California Exclusive Camper Magazine Article / Review / Advert Download Download March 2001 VW T4 Westfalia California Exclusive Magazine Review (English) - PDF Format.
For loads more downloads including Owners User Instruction Manuals, Repair Manuals and Equipment Manuals visit the VW T4 Westfalia Camper Downloads Page ;-)
